VFB160CTH & VFB200DTH – Ceiling type fan with Duct
Delta’s VFB160 and VFB200 series of DC energy-saving ventilation fans adopt DC brushless motors, which are energy-saving and quiet. Large air volume, low noise design, suitable for large spaces requiring high air exchange. The main machine shell is made of rust-proof galvanized steel plate, which is sturdy and durable.
- Mounting hole size: 240 x 240 mm
- VFB200DTH: super large air volume 200m³/h
Features of product
- High back pressure and low noise
- Ultra-high ventilation
- Power saving DC – DC motor
- Multiple safety design
- Five-year warranty for the whole machine
Description

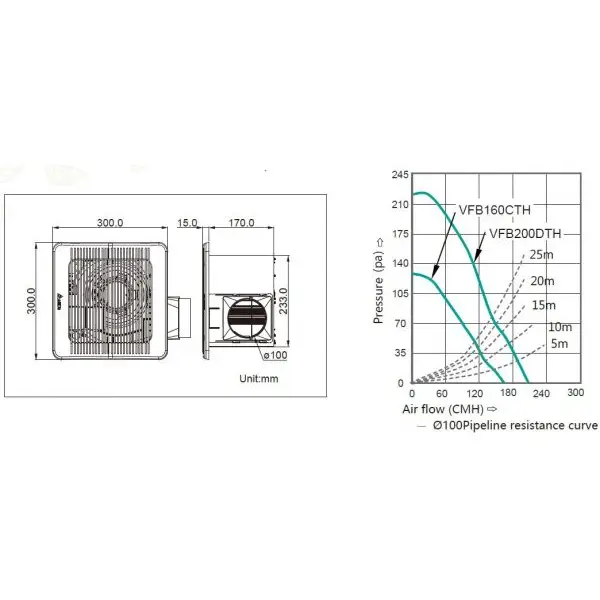

| Model | Grille Size | Mounting Opening | Duct Size | Weight | Power Rating | Power Consumption | Maximum Air Flow | Maximum Air Pressure | Noise | Remark | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO. | mm | mm | mm | kg | VAC/Hz | WAlts | CMH | CFM | Pa | inAq | dB-A | |
| VFB160CTH | 300 x 300 | 240 x 240 | Ø100 | 3.4 | 220/50 | 7.0 | 160 | 94 | 127 | 0.50 | 40 | |
| VFB200DTH | 300 x 300 | 240 x 240 | Ø100 | 3.4 | 220/50 | 11.0 | 200 | 117 | 215 | 0.86 | 38 | |
- The max air flow is measured in free air; max air pressure is measured at zero air flow.
- Noise is measured in semi-anechoic chamber in free air, one meter from intake, right and left side. 3 microphones to average.
- All readings are typical values at rated voltage.
- Specifications are subject to change without notice.
