VDB120BXTH & VDB200DXTH – In-Line Exhaust Fan
Delta In-line fan models meet a wide range of supply or exhaust applications in commercial and industrial facilities. There are models available for clean air, sound sensitive and heavy-duty industrial applications. Designed for indoor and outdoor clean air applications where space is a prime consideration. VDB120 and VDB200 series feature a unique combination of high static pressure, installation flexibility, ease of service, high efficiency and low sound levels.
Feature of product
- Five-year warranty for the whole machine
Description
| Model | Mounting Opening | Duct Size | Weight | Power Rating | Power Comsumption | Maximum Air Flow | Maximum Air Perssuer | Noise | Remark | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO. | mm | mm | kg | VAC/Hz | Watt | CHM | CFM | Pa | inAq | dB-A | |
|
VDB120BXTH
|

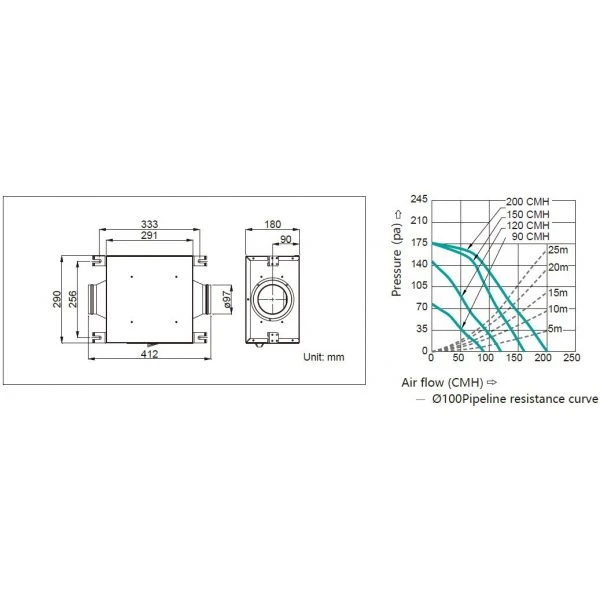

Refer to Dimension Drawing
|
100
|
5.5
|
220/50
|
3.2 | 90 | 53 | 75 | 0.3 | 16 | Low Speed |
| 6 | 120 | 71 | 140 | 0.56 | 17 | Full Speed | |||||
|
VDB200DXTH
|
9 | 150 | 88 | 175 | 0.7 | 17 | Low Speed | ||||
| 17 | 200 | 118 | 175 | 0.7 | 21 | Full Speed | |||||
- The max. air flow is measured in free air; max air pressure is measured at zero air flow.
- The noise is measured in semi-anechoic chamber, at 1.5meter under ceiling to simulate real installation (mounting fan on the ceiling, ducted inlet and outlet).
- All readings are typical values at rated voltage.
- VDB120BXTH / VDB200DXTH operates in low speed mode or full speed mode by 2 switches.
- Specifications are subject to change without notice.
