Series Vents Stream
- Sound-insulated casing
- Impeller type: Mixed-flow

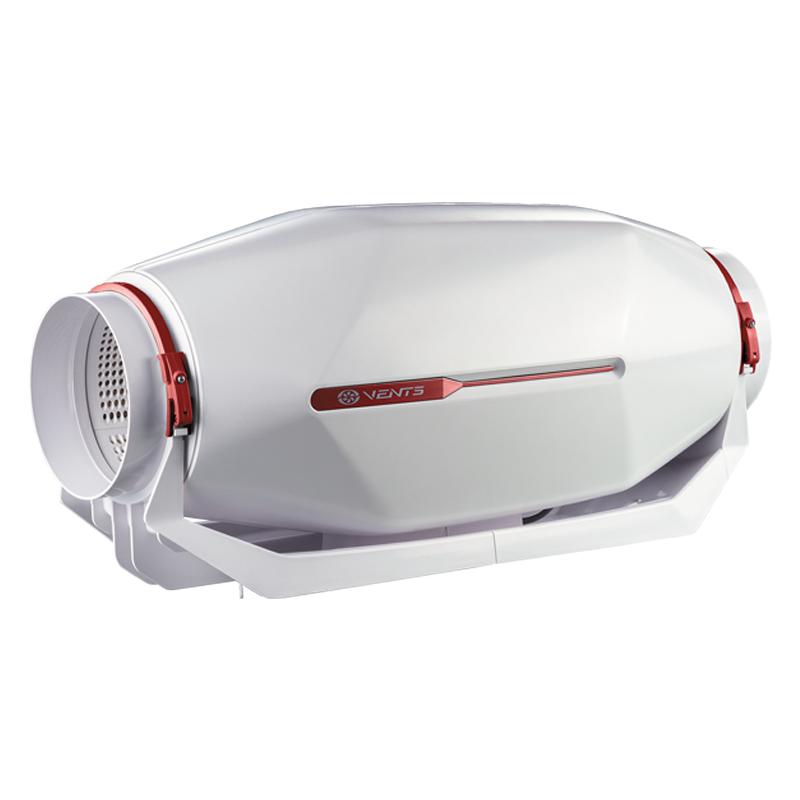

VENTS STREAM & STREAM EC
Stream is a quiet, energy-efficient duct fan in a plastic casing with a unique modern design.
Low noise
Unique design
High energy efficiency
- Sound-isolated casing with special perforation and sound-absorbing material ensures attenuation of sound waves in a wide frequency range
- High efficiency 3-speed asynchronous or EC motors with built-in thermal protection
- Diameters: 100…160 mm
- Maximum air flow:
AC: up to 540 m³/h
EC: up to 600 m³/h
- High corrosion resistance
Design
The designer casing is made of high quality and durable plastic. The internal perforation of the casing allows sound waves to pass through, directing them at a certain angle onto a layer of sound-insulating material.
Heat- and sound-insulation of the casing are made of a 50 mm layer of non-flammable mineral wool. The special perforation of the casing and the sound-absorbing material ensure that sound is attenuated over a wide frequency range.
Due to the conic impeller and special blade profiling the circumferential air speed increases thus providing higher air pressure and capacity as compared to standard axial fans.The diffuser, the specially profiled impeller and the directing vanes at the outlet of the fan casing distribute air flow in such a way as to attain the best combination of high performance and high pressure at low noise level.
The fan casing is equipped with an outer airtight terminal box for connection to power mains.
Options
Speed controller
Speed controller
Speed controller
Temperature sensor
Plug cable
| Lineup Vents Stream | Connected air duct size, mm | Phases | Rated power, W | Maximum airflow, m³/h | Timer | Temperature sensor | Number of speeds |
|---|---|---|---|---|---|---|---|
Vents Stream 100/125
|
125/100 | 1 | 21 | 320 | 3 | ||
|
Vents Stream 100/125 T
|
125/100 | 1 | 21 | 320 | Turn off timer | 3 | |
|
Vents Stream 100/125 Un
|
125/100 | 1 | 21 | 320 | Remote | 3 | |
|
Vents Stream 100/125 R
|
125/100 | 1 | 21 | 320 | 3 | ||
|
Vents Stream 100/125 V
|
125/100 | 1 | 21 | 320 | 3 | ||
|
Vents Stream 100/125 P
|
125/100 | 1 | 21 | 320 | 3 | ||
|
Vents Stream 150/160
|
160/150 | 1 | 51 | 540 | 3 | ||
|
Vents Stream 150/160 T
|
160/150 | 1 | 51 | 540 | Turn off timer | 3 | |
|
Vents Stream 150/160 Un
|
160/150 | 1 | 51 | 540 | Remote | 3 | |
|
Vents Stream 150/160 R
|
160/150 | 1 | 51 | 540 | 3 | ||
|
Vents Stream 150/160 V
|
160/150 | 1 | 51 | 540 | 3 | ||
|
Vents Stream 150/160 P
|
160/150 | 1 | 51 | 540 | 3 |
