Additional information
| color | Matt Black, Stone White, Stone Beige, Stone Grey |
|---|---|
| Model | Vents 100 Stone K, Vents 100 Stone L, Vents 100 Stone T, Vents 100 Stone TH, Vents 100 Stone K turbo, Vents 100 Stone L turbo, Vents 100 Stone T turbo, Vents 100 Stone TH turbo |
Advantages of Vents Stone fans
3. The fan panel can be decorated with ceramic tiles or other materials with adjustable thickness.
2. Optional turn-off delay timer and humidity sensor.
1. Easy maintenance.
6. Sturdy metal structure with reliable fasteners.
5. It is possible to install a check valve to prevent drafts and heat loss.

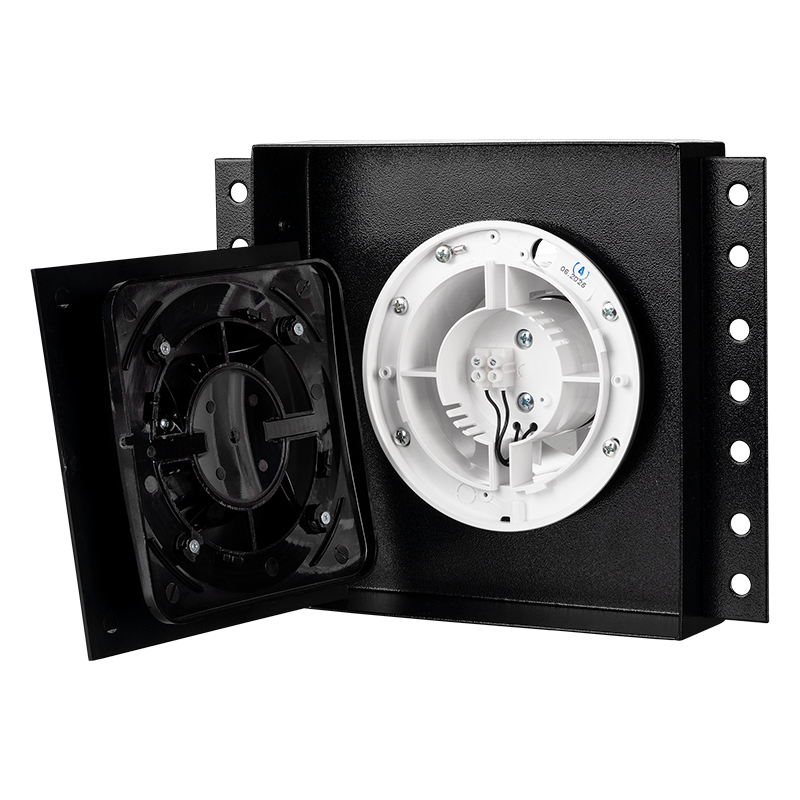

4. Modular design allows for fun removal when the casing is mounted in a wall.
Modifications and options
Stone К – fan equipped with a back valve to prevent backdraft.
Stone L – the motor is equipped with ball bearings designed to increase the service life (ca. 40 000 working hours). The fan can be installed at any angle; The bearings are maintenance-free and filled with grease for the whole service life.
Stone turbo – high-performance motor.
Stone T – equipped with a regulated timer with the operating time from 2 to 30 minutes.
Stone TH – equipped with a timer with the operating time from 2 to 30 minutes and a humidity sensor with the threshold value from 60 to 90 %.
Application
Colour modifications
Stone grey
Stone beige
Stone white
Installation example
| Lineup Vents Stone | Connected air duct size, mm | Rated power, W | Maximum airflow, m³/h | Sound pressure level LpA at 3 m, dB(A) | Humidity sensor | Timer |
|---|---|---|---|---|---|---|
Vents 100 Stone
|
100 | 14 | 90 | 33 | ✖ | ✖ |
|
Vents 100 Stone K
|
14 | 90 | 33 | ✖ | ✖ | |
|
Vents 100 Stone L
|
14 | 90 | 33 | ✖ | ✖ | |
|
Vents 100 Stone T
|
14 | 90 | 33 | ✖ | Turn off timer | |
|
Vents 100 Stone TH
|
100 | 14 | 90 | 33 | ✔ | Turn off timer |
|
Vents 100 Stone K turbo
|
16 | 113 | 37 | ✖ | ✖ | |
|
Vents 100 Stone L turbo
|
16 | 113 | 37 | ✖ | ✖ | |
|
Vents 100 Stone T turbo
|
16 | 113 | 37 | ✖ | Turn off timer | |
|
Vents 100 Stone TH turbo
|
16 | 113 | 37 | ✔ | Turn off timer |
