Series Vents LD

Series Vents LD

Axial decorative fans for extract ventilation with panels

Categories: ,
Add to quote
Description
Model range
Downloads

The VENTS LD series is a line of classic axial decorative fans for exhaust ventilation in residential premises. This series of fans combines stable operation, silent operation, and a wide range of modifications, making them a reliable solution for everyday use.

Model features

  • Silent operation
  • Reliable AC motor
  • Low power use
  • Fast & easy installation
  • Decorative front panels available
  • IP34

Application

Thanks to the optimal combination of performance and noise level, VENTS LD fans are suitable for premises with constant or periodic air circulation.

VENTS LD fans are designed to ventilate:

  • bathrooms and shower rooms;
  • kitchens;
  • laundry rooms and utility rooms;
  • other domestic and auxiliary areas
The fans can be installed directly in ventilation shafts or connected to air ducts of the matching diameter.

Available modifications for the VENTS LD series

The LD series models are available in various modifications, allowing you to choose the optimal solution depending on the installation conditions, degree of automation, and comfort requirements.

NAME DESCRIPTION
LDA / LDA chrome / LD alumat Decorative front panels made of natural aluminum: polished, mirror-like, or matte surface.
LD1 Design with a shortened pipe for installation in thin walls.
LD K Modification with a check valve to prevent backdraft.
LD L Motor on ball bearings with a service life of about 40,000 hours, can be mounted on the ceiling or at any other angle.
LD turbo High-performance design for intensive air circulation.
LD 12 Safe design for rooms with high electrical safety requirements.
LD T Built-in adjustable turn-off delay timer (2–30 min).
LD TH Timer + humidity sensor (automatic turn-on at 60–90%).
LD V Designs with pull cord switch.

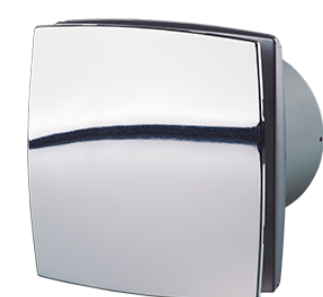

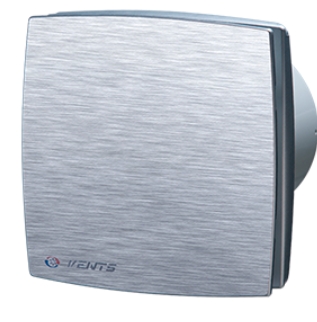

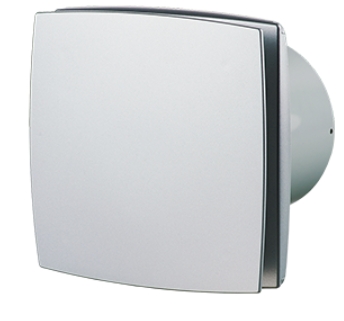

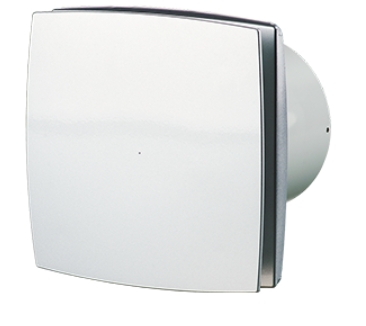

Decorative front panel designs

The VENTS LD series is available with decorative front panels with different surface types.This allows you to choose a fan that meets the requirements for the appearance and style of the interior, while maintaining the functionality and reliability of the series.

Lineup Vents LD Connected air duct size, mm Rated power, W Maximum airflow, m³/h Sound pressure level LpA at 3 m, dB(A) Pull cord Humidity sensor Timer Number of speeds
Vents 100 LD
100 14 88 33 ✖ ✖ ✖ 1
Vents 100 LD V
100 14 88 33 ✔ ✖ ✖ 1
Vents 100 LD VT
100 14 88 33 ✔ ✖ Turn off timer 1
Vents 100 LD VTH
100 14 88 33 ✔ ✔ Turn off timer 1
Vents 100 LD K L
100 14 88 33 ✖ ✖ ✖ 1
Vents 100 LD L
100 14 88 33 ✖ ✖ ✖ 1
Vents 100 LD T L
100 14 88 33 ✖ ✖ Turn off timer 1
Vents 125 LD L
125 16 167 34 ✖ ✖ ✖ 1
Vents 125 LD T K
125 16 167 34 ✖ ✖ Turn off timer 1
Vents 125 LD T
125 16 167 34 ✖ ✖ Turn off timer 1
Vents 125 LD TH
125 16 167 34 ✖ ✔ Turn off timer 1
Vents 125 LD TH K
125 16 167 34 ✖ ✔ Turn off timer 1
Vents 125 LD T L
125 16 167 34 ✖ ✖ Turn off timer 1
Vents 125 LD TH L
125 16 167 34 ✖ ✔ Turn off timer 1
